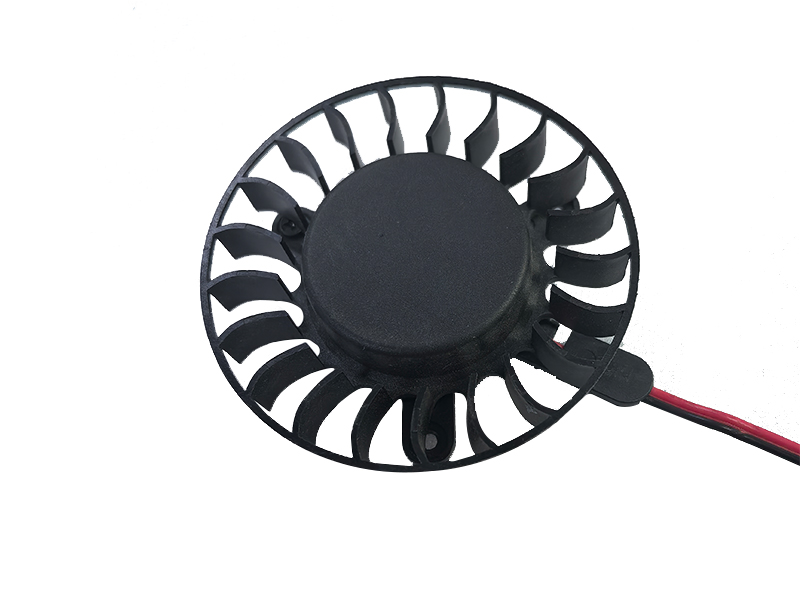

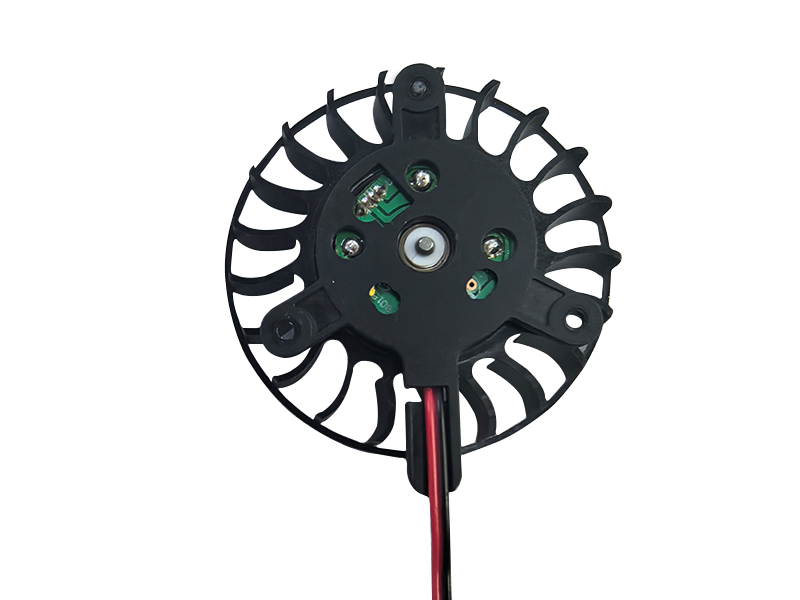

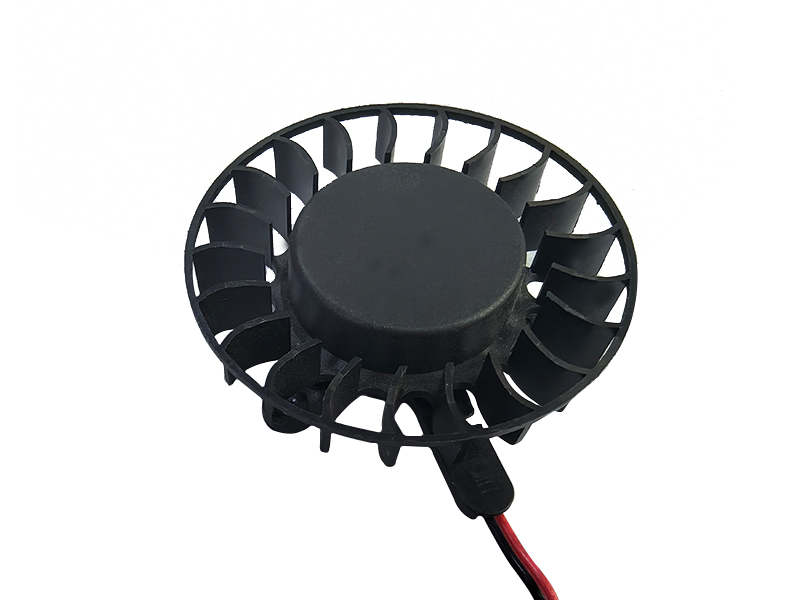

BFB7015L12 70*70*15 DC 12V 7015mm Dual Ball Bearing Brushless Axial Cooling Fan 2Pin

BFB7015L12 707015 DC 12V 7015mm Dual Ball Bearing Brushless Axial Cooling Fan 2Pin

Model Size: 70*70*15mm
Motor: DC Brushless Fan Motor
Bearing: Ball/Sleeve/Hydraulic
Direction of rotation:Clockwise,viewed toward rotor

Inquire

Features

High-Speed Performance: Designed to deliver impressive rotational speeds, ensuring efficient cooling performance for various applications.
Versatile Applications: Suitable for mature charger solutions and other electronic devices where reliable cooling is essential.
Silent Operation: Despite its high-speed capabilities, this fan operates quietly, minimizing noise levels for a more peaceful environment.
Frameless Design: The frameless construction allows for easy integration into compact spaces, making it ideal for applications with limited room.
IP Rating Compatibility: With appropriate modifications, this fan can achieve IP ratings, providing added protection against dust and moisture ingress.

Technical Description

Dimensions	70x70x15mm
Impeller material	Plastic PBT(UL94V-0)
Direction of rotation	Clockwise, viewed toward label
Bearing	Ball bearing system
Life expectance	70,000 hrs by ball bearing system
Motor protection	Protection against reverse polarity
	Locked rotor protection
	Automatic restart capability
Option	Possible custom designs; Speed ,signal ,Moisture protection.
Wire	UL1007 #24

Nominal Data

Type of Voltage		DC
Nominal Valtage	in V	12
Airflow	in CFM	4.53
Air Pressure	in mmh2O	10.92
Speed	in RPM	3000
Rated Current	in A	0.14
Power Input	in W	3.26
Sound Pressure Level	in dB(A)	34.14
Nominal Valtage range	in V	DC7~13.5V

Environmental Characters

Operating temperature	-10°C~70°C (Non-condensing)
Storage Temperature	-40°C~75°C (Non-condensing)
Operating Humidity	5%~90%RH
Storage Humidity	5%~95%RH

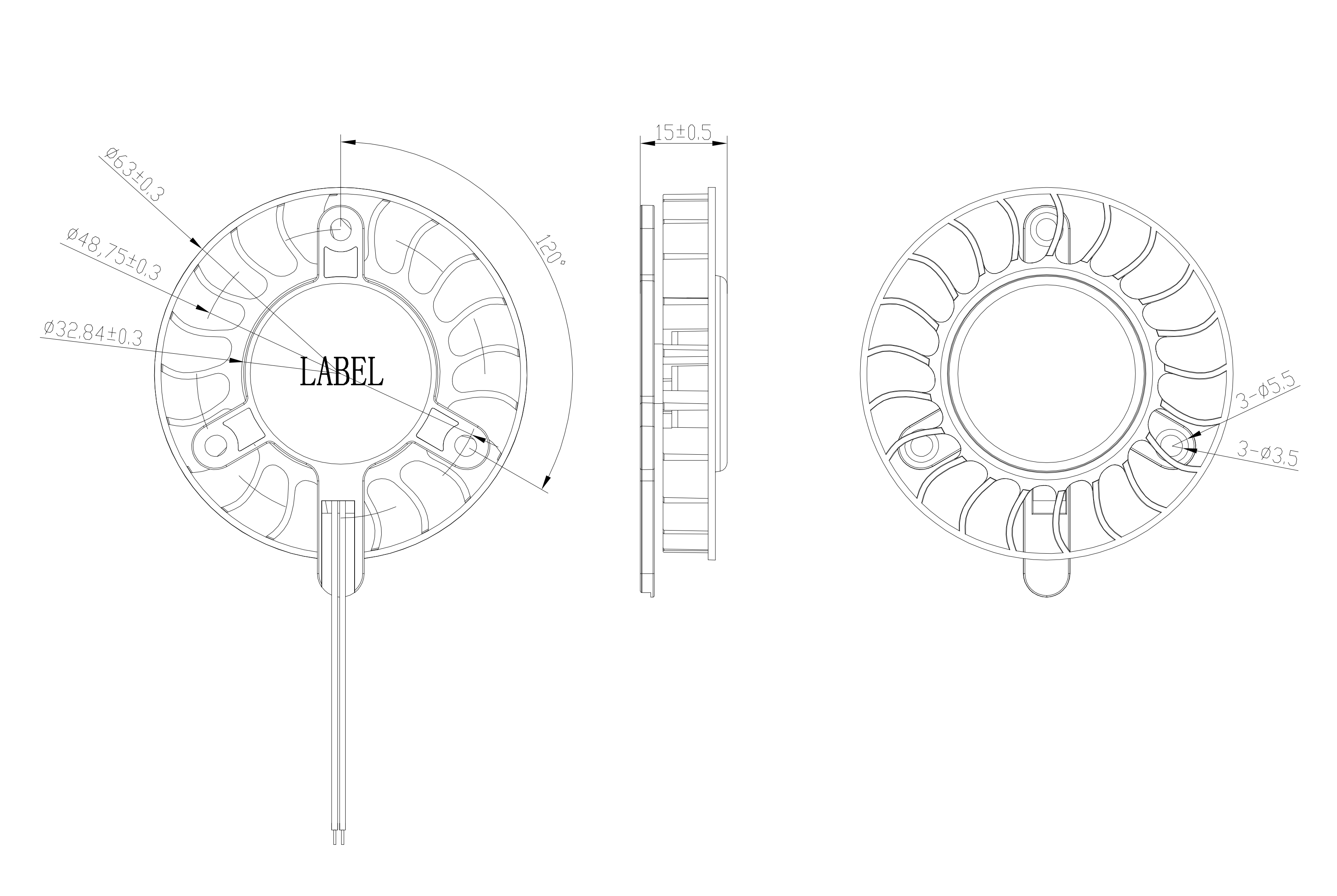

2D Dimension Drawing

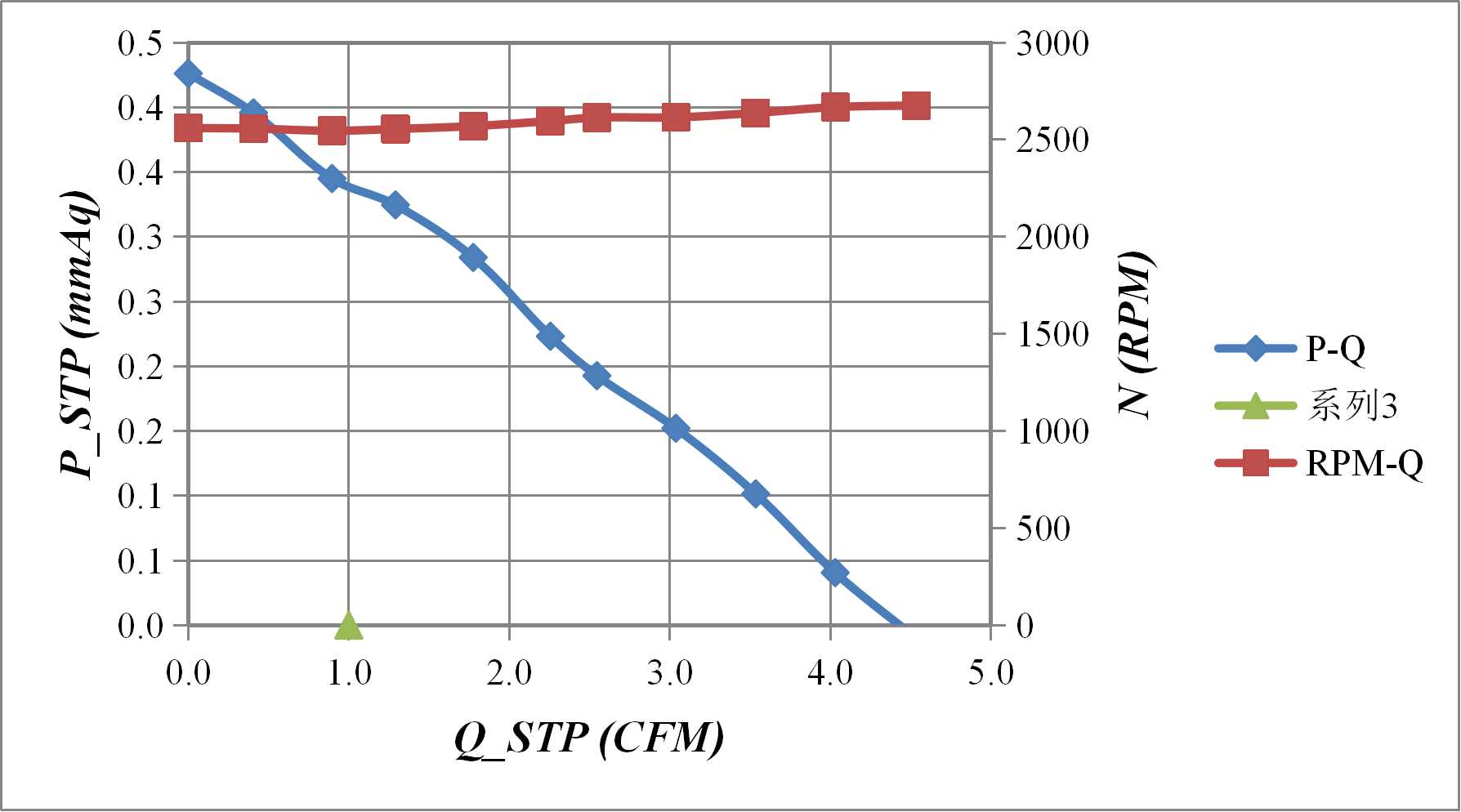

PQ Curve
